The Whole House and the Furnace Itself

One filter, one thermostat, and everything downstream of both.

Every other room page on this site describes a per-room appliance. This one describes the two things that affect all of them at once: the filter in the return slot and the thermostat on the wall.

The filter decision has two halves that do not interact. Size decides whether it goes in. Rating decides what it does to airflow. Getting the first one wrong is obvious within a minute; getting the second one wrong is invisible and shows up at the equipment.

The thermostat decision is the one place on this site where the wrong choice can damage equipment rather than merely disappoint. Which is why this page, like every page here, publishes no wiring guidance at all.

Links to Amazon on this page are affiliate links. If you buy through one, this site may earn a commission at no additional cost to you. Nothing on the page was tested here and no product placement was paid for.

COOLINGMoving heat and moving air

  • Air moving at all, which is what the filter decision protects

    The blower is sized for a certain amount of resistance. A restricted system moves less air, and less air reaching the far rooms is the symptom people notice before they notice anything at the equipment.

    See the category

  • Fans as a supplement where one room always runs warm

    A single room that never keeps up with the rest of the house is a balance problem, not a filter problem. A fan is the cheap intervention while the actual cause gets looked at.

    See the category

HEATING & HUMIDITYAdding moisture, or deliberately not

  • Per-room humidifiers, because that is what this catalog covers

    Whole-home humidification is equipment installed into the ductwork and it is outside what this site covers. Everything in the humidifier category here is a portable, per-room unit.

    See the category

  • Cool mist for any room where placement is not fully controlled

    Warm steam units boil water and carry a burn hazard. Where a unit will move between rooms, or where a room has children in it, the cool mist group is the one to shop in.

    See the category

BOTHThe filter and the thermostat

Measure the filter in the slot before ordering — all three dimensions, on the frame. Then read the actual size stated in the listing, not the nominal size in the product title. In this catalog those differ by up to half an inch on a face, and the depth on every one-inch filter listed is under an inch.

For the rating: the system manufacturer documentation states what the equipment is designed around. That decides. Note the direction of the arrow on the old frame before pulling it, and put the new one in with the arrow toward the blower. On the thermostat, power comes off at the service panel first, the manufacturer compatibility checker runs before ordering, and anything unclear goes to a licensed HVAC professional.

Skip these in this room

  • Upgrading the MERV rating without checking the equipment documentation

    Finer media adds resistance. The manufacturer states what the system is designed for, and that is the only source that settles it. A higher number is not an upgrade if the blower cannot pull through it.

  • Buying a stack of filters before measuring the slot

    A six-pack of the wrong actual size is six filters that do not seat properly. Measure once, order once. The nominal size on the box is not the measurement.

  • Any thermostat purchase made before running the compatibility checker

    There are systems these do not work with at all — line voltage, millivolt, some multi-stage and heat pump configurations — and connecting one to the wrong system can damage equipment.

Before anything else in this room

Cut power to the heating and cooling equipment at the service panel before removing an installed thermostat, and confirm it is off before anything is disconnected.

Also worth stating plainly (2)

This site publishes no wiring instructions and no terminal information. If the system is not clearly identified by the manufacturer compatibility checker, the job belongs to a licensed HVAC professional.

Also worth stating plainly (3)

A loaded filter restricts airflow more than a coarse clean one. Replacing on schedule does more for the equipment than raising the rating does.

The replacements this page names

Every figure on these cards is read off the listing it belongs to. They appear here because a column above named something concrete for whole house and the furnace itself.

Most common slot

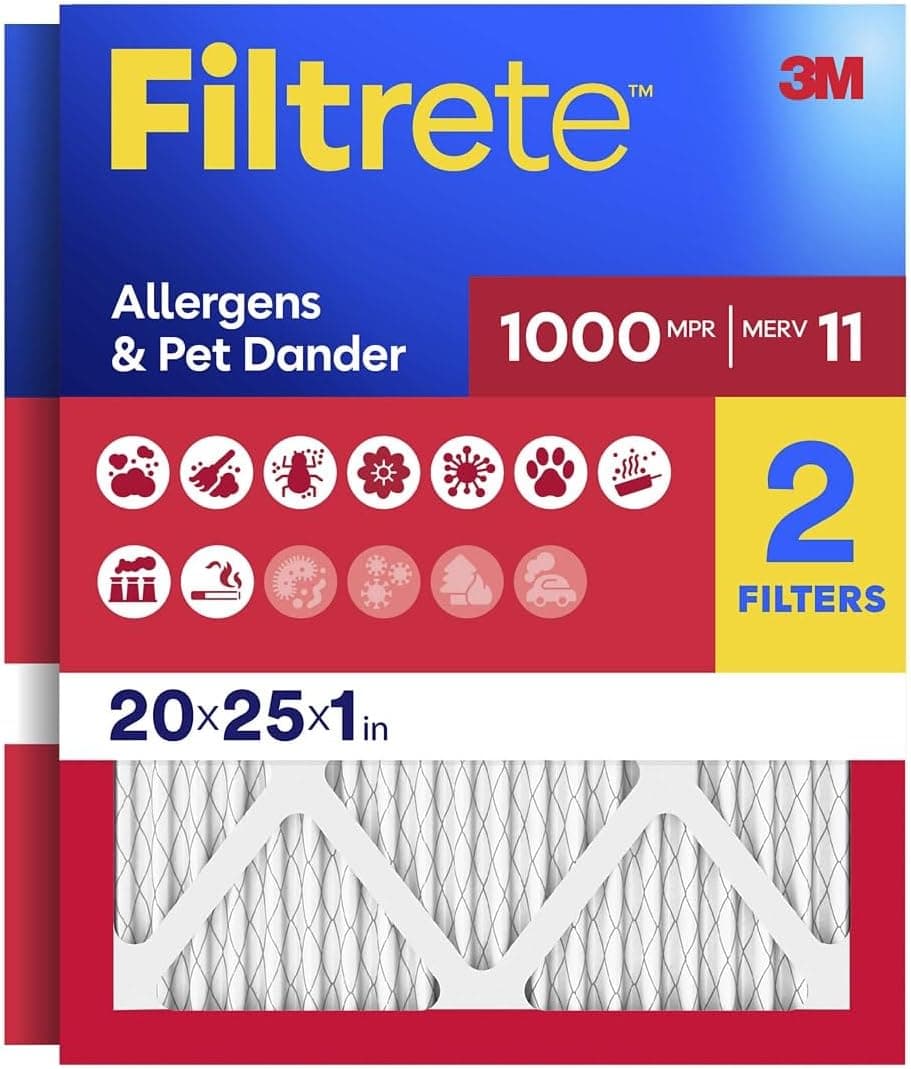

Filtrete 20x25x1 MERV 11, 2-pack

Filtrete 20x25x1 MERV 11, 2-pack

  • Nominal 20x25x1
  • Actual 19.68 x 24.68 x 0.81 in
  • MERV 11
  • MPR 1000
  • 2 per box

20x25x1 is the size most residential furnace slots take, and this listing states both scales at once: MPR 1000 and MERV 11. Actual size is stated as 19.68 x 24.68 x 0.81 in. Carrying two rating numbers on one product is the everyday reason the MPR versus MERV page exists — they are not the same scale and they are not convertible.

What the listing supports, and what it does not
  • Actual dimensions are stated to hundredths rather than rounded to the nominal size
  • Both MERV 11 and MPR 1000 appear on the same listing for direct comparison
  • The most widely stocked nominal size, so replacements are easy to find
  • Stated depth of 0.81 in is closer to a full inch than most one-inch filters here
  • MERV 11 media restricts airflow more than the MERV 5 to 8 options in this catalog
  • Two per box means reordering twice a year at a quarterly schedule
  • Two rating numbers on one label invites comparing across incompatible scales

Best forThe standard 20x25x1 slot in a system whose documentation allows a MERV 11 filter.

Check it on Amazon
Four-inch depth
Filterbuy 20x25x4 MERV 8, 2-pack

Filterbuy 20x25x4 MERV 8, 2-pack

  • Nominal 20x25x4
  • Actual 19.50 x 24.50 x 3.63 in
  • MERV 8
  • 2 per box

The only four-inch filter in this catalog. The listing states an actual size of 19.50 x 24.50 x 3.63 in, which is well under four inches on the depth as well as half an inch under on both faces. A four-inch cabinet is a different piece of equipment from a one-inch slot, and a one-inch filter will not sit correctly in it.

What the listing supports, and what it does not
  • Actual size is stated on all three dimensions including the depth
  • A deeper media bed holds more before it loads up
  • MERV 8 in a deep frame keeps the rating moderate where cabinets allow depth
  • Electrostatic pleated construction and US manufacture are stated
  • Only fits systems built with a four-inch filter cabinet, which most homes do not have
  • Stated depth is 3.63 in, so gasketing and rail fit should be checked before ordering more
  • Two per box, and deep filters cost more per unit than one-inch ones

Best forA furnace with a purpose-built four-inch filter cabinet rather than a one-inch return slot.

Check it on Amazon
States what it controls
Honeywell Home X2P Programmable Thermostat

Honeywell Home X2P Programmable Thermostat

This listing does the thing the others mostly leave to a compatibility tool: it states what system the thermostat controls. Single-stage, 1 heat and 1 cool, with a 5-2 day schedule. If your system is not single-stage, that sentence has already answered the question. Turn the power off at the panel before any old thermostat comes off the wall, and check compatibility with the manufacturer tool before ordering.

What the listing supports, and what it does not
  • Compatibility is stated in plain terms in the listing rather than left to be looked up
  • A 5-2 day schedule covers the weekday and weekend split without a network
  • No account, app, or network is stated as required for it to run a schedule
  • The simplest option here to live with when nobody wants another connected device
  • Single-stage compatibility per the listing rules out multi-stage systems entirely
  • No remote sensing or app control is stated
  • A 5-2 schedule is less granular than a per-day one

Best forA single-stage system, confirmed with the manufacturer compatibility tool first.

Check it on Amazon

To repeat what is said at the top of the page: the Amazon links here are affiliate links and may earn this site a commission. Ordering, badges, and every claim on the page were decided from what the listings state, not from any commercial arrangement.
